Our Products

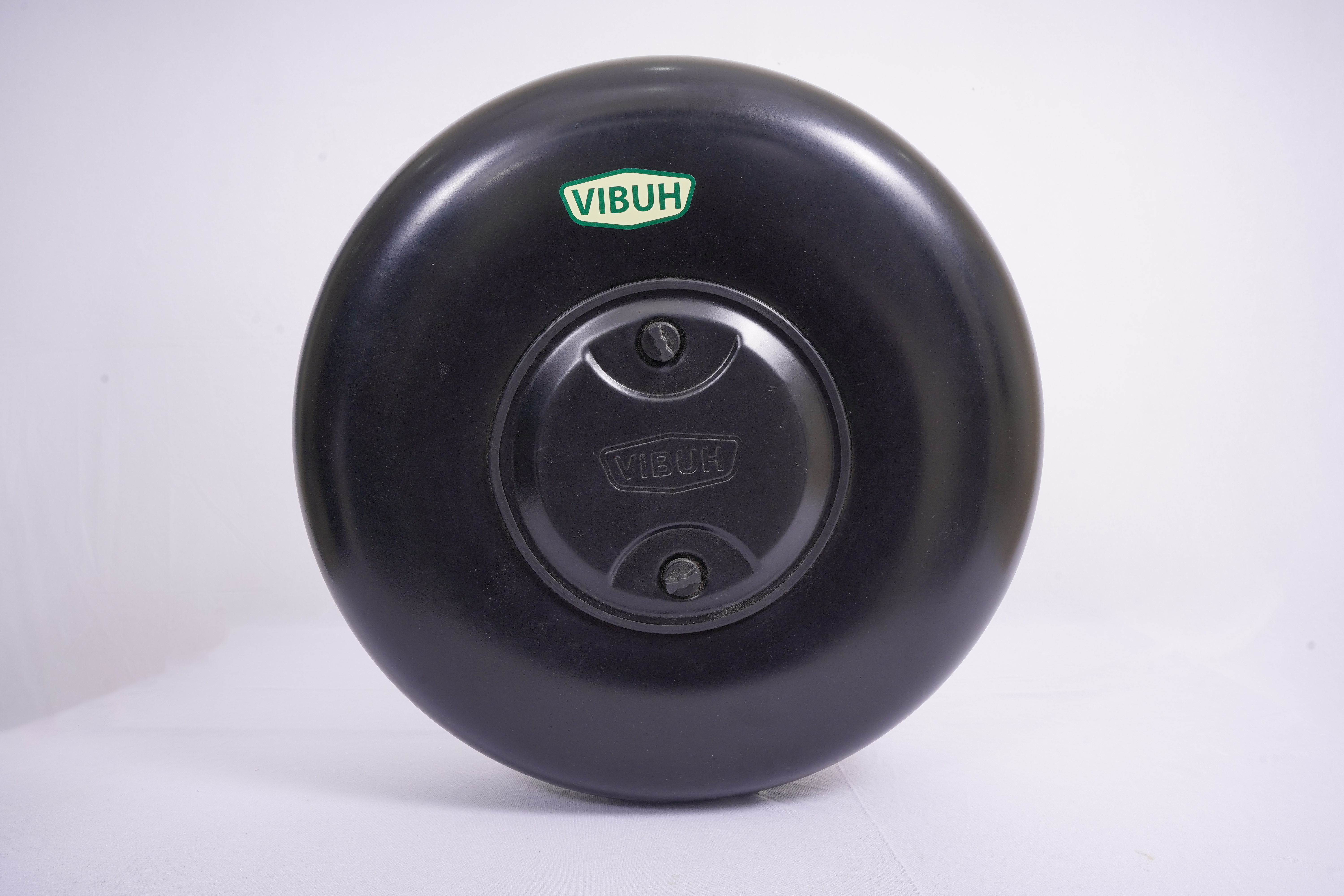

33L Toroidal Tank

A 33-liter capacity toroidal tank for safe LPG storage.

• Water Capacity: 5L
• Tare Weight : 4.5 Kg
• Outer Diameter : 185 mm
• Length : 244 mm
• Working Pressure: 2 MPa
• Temperature -20 to +65°C
• Approval : IS 14899

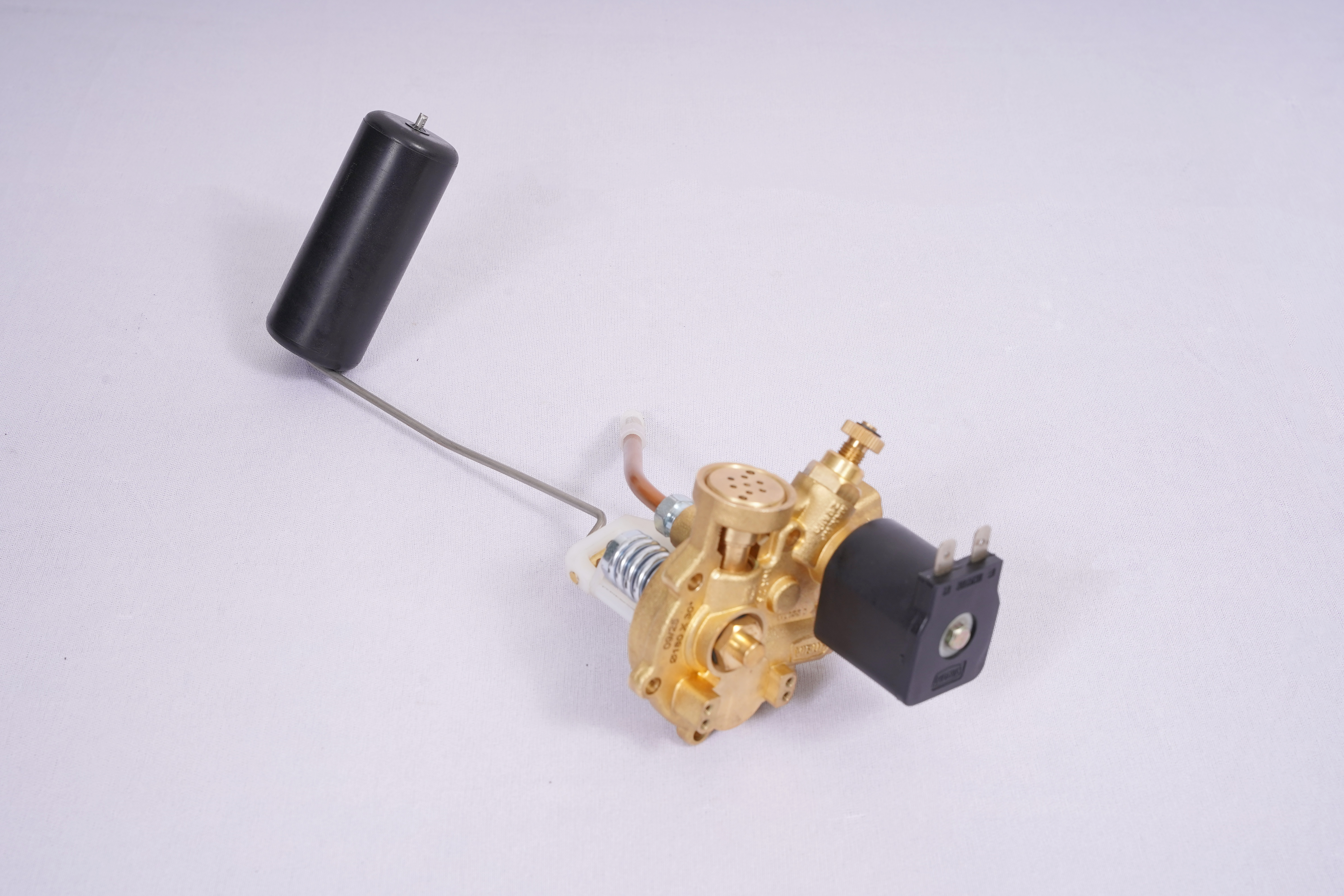

Multifunction Valve

• Pressure: 2 MPa
• Features: 80% fill limit, level gauge, solenoid.

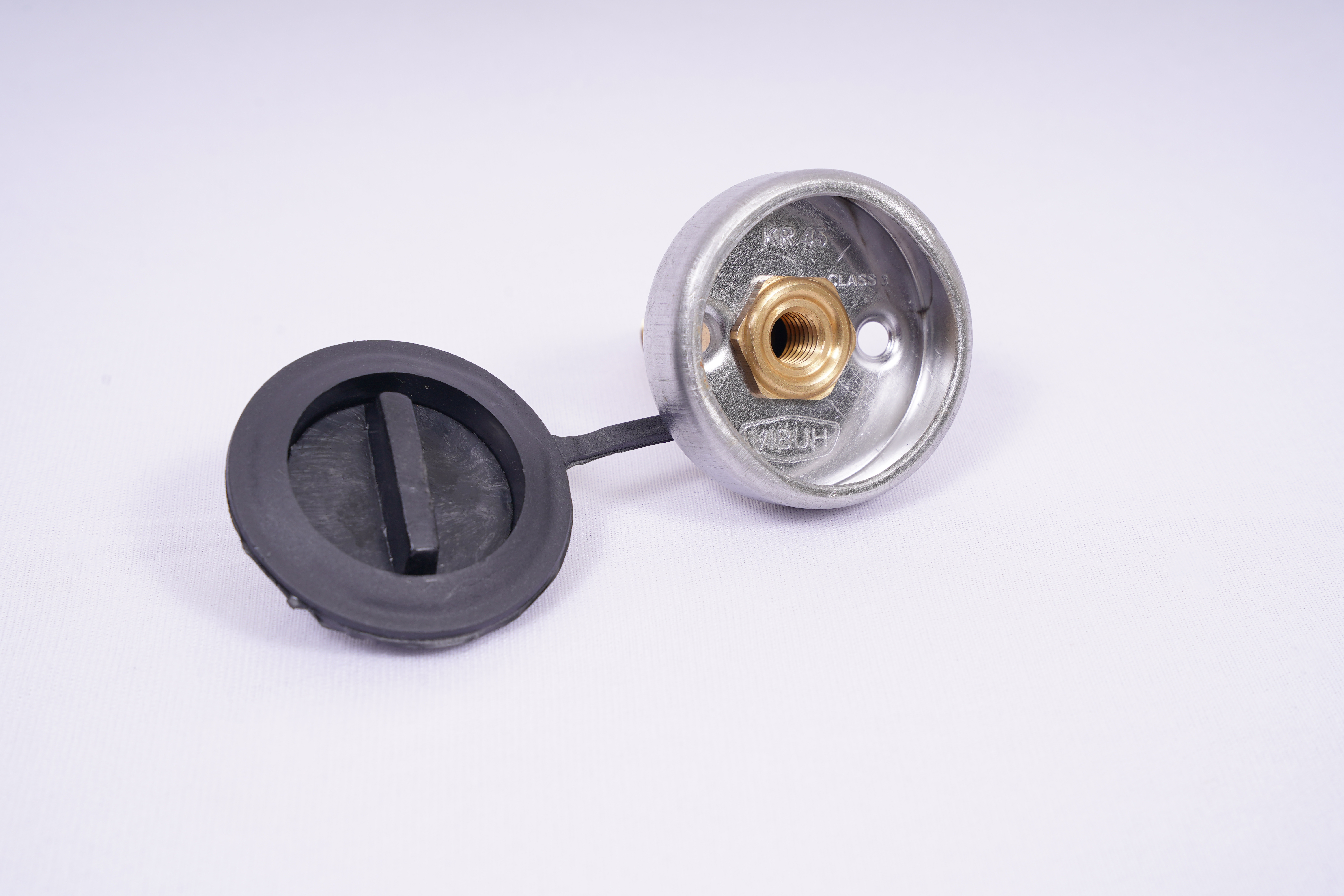

Filler Valve

External non-return valve for safe refueling. ECE & ISO compliant.

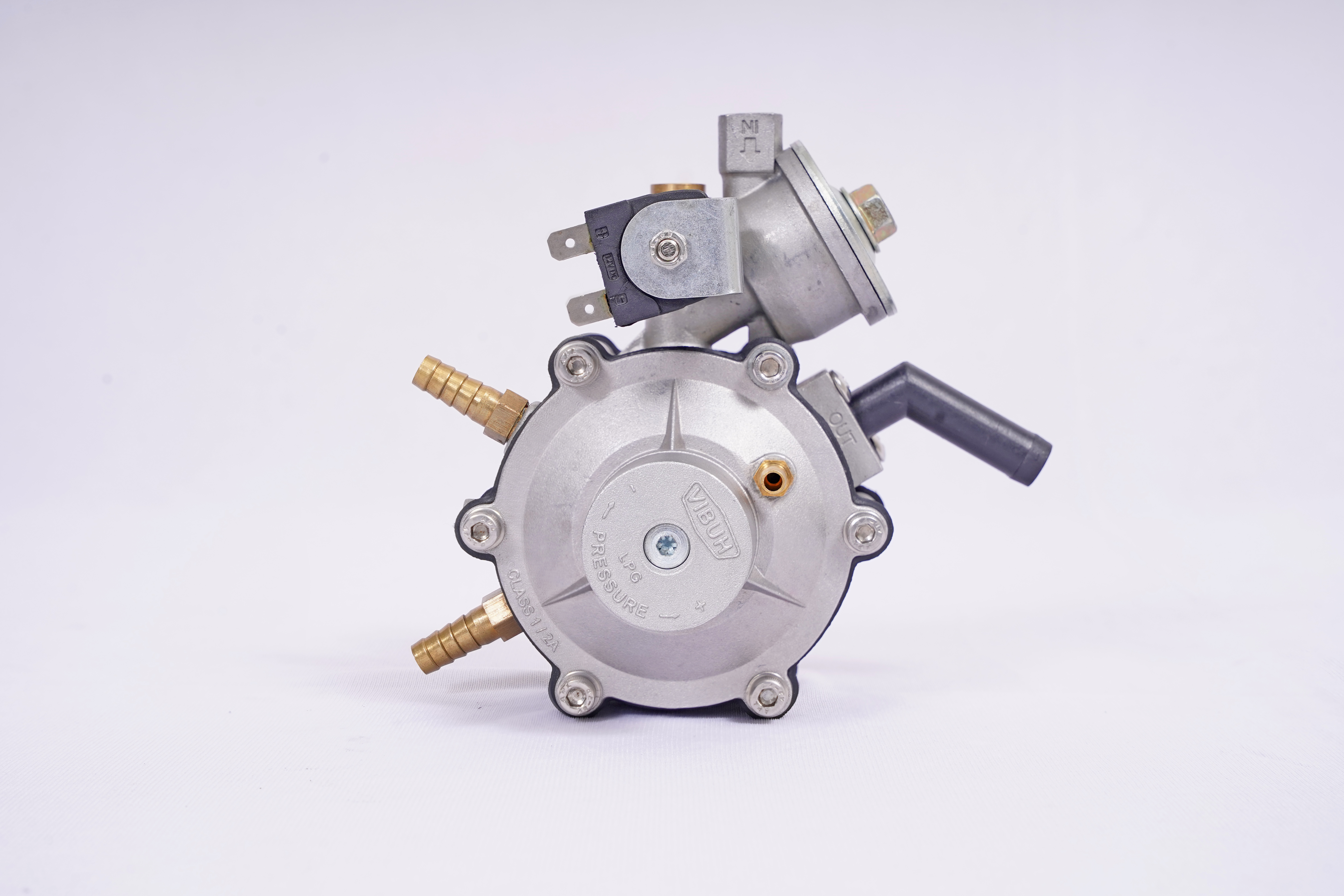

Reducer (KR 56)

• Output Pressure: 1.2 bar
• Approval: ECE 67R-05

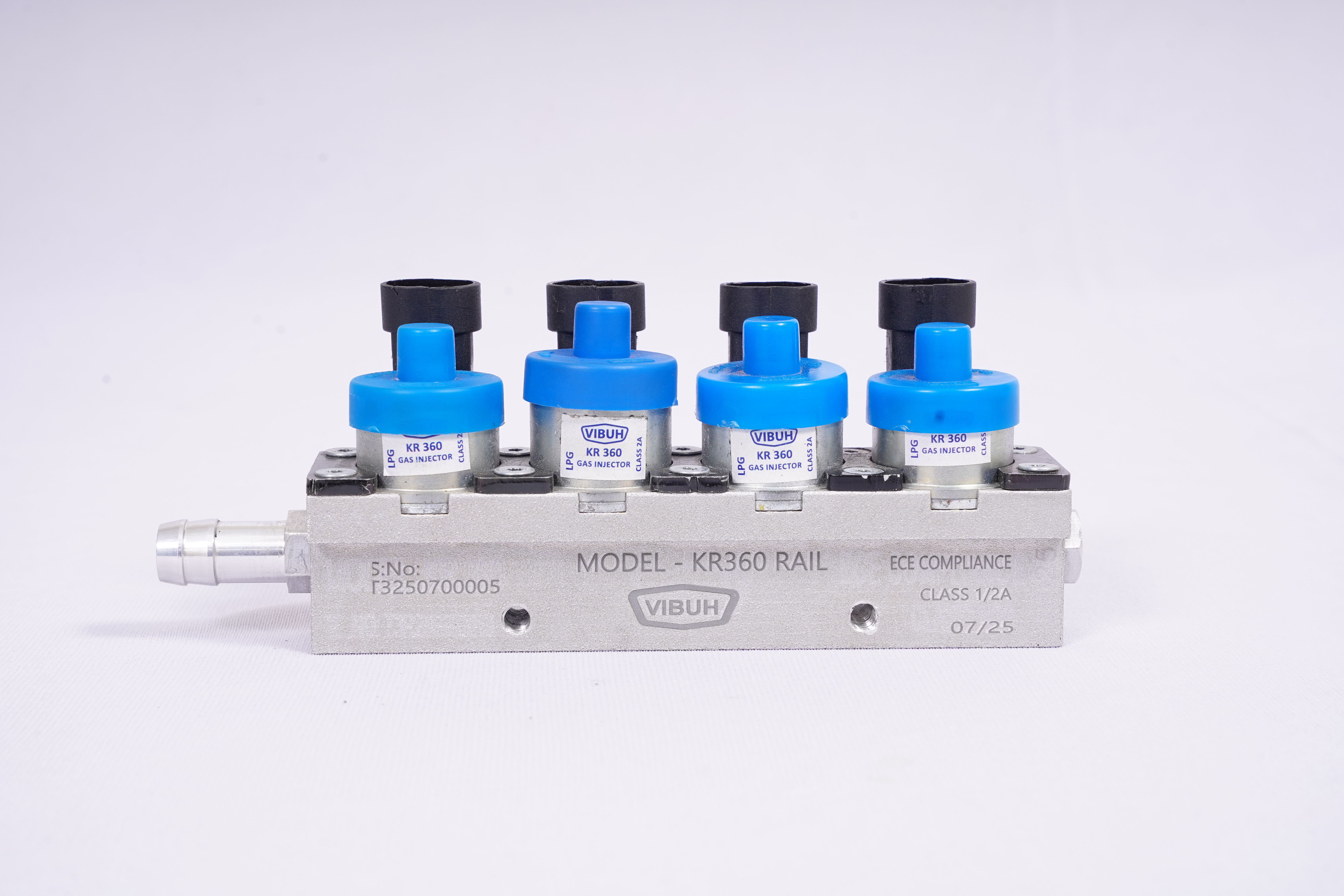

Rail Injector

• Coil Resistance: 2.0 Ω ±5%
• Opening Time: 1.9ms
• Closing Time: 1.25ms
• Max. Working Pressure: 4 Bar
• Operating Temp: -20°±120°C
• Operating Voltage Range: 8-16 V.DC
• Approval: ECE R67

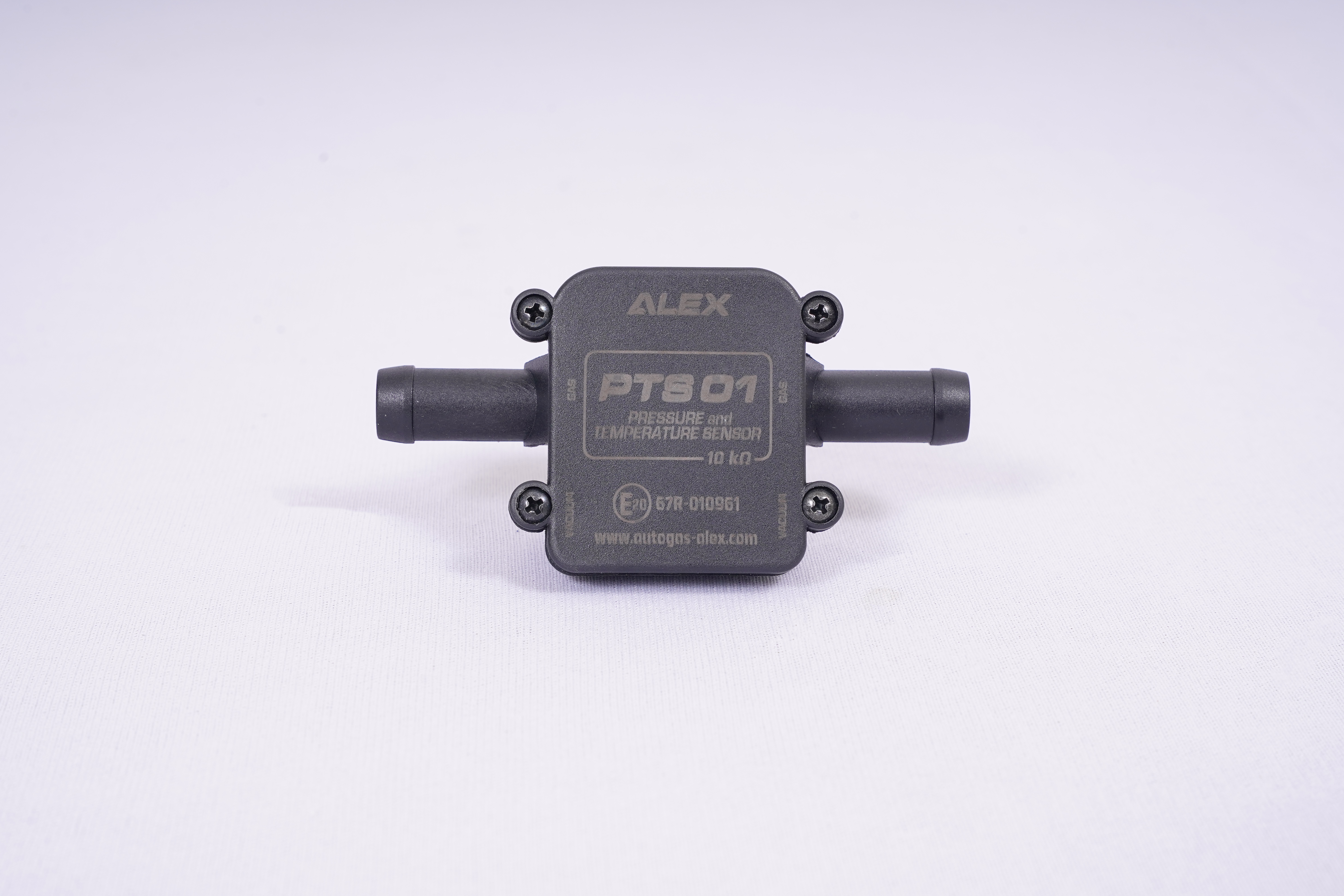

MAP Sensor

Measures gas pressure, temperature, and engine vacuum for the ECU.

ECU (Electronic Control Unit)

Manages injector control, fuel level indication, and mode selection.

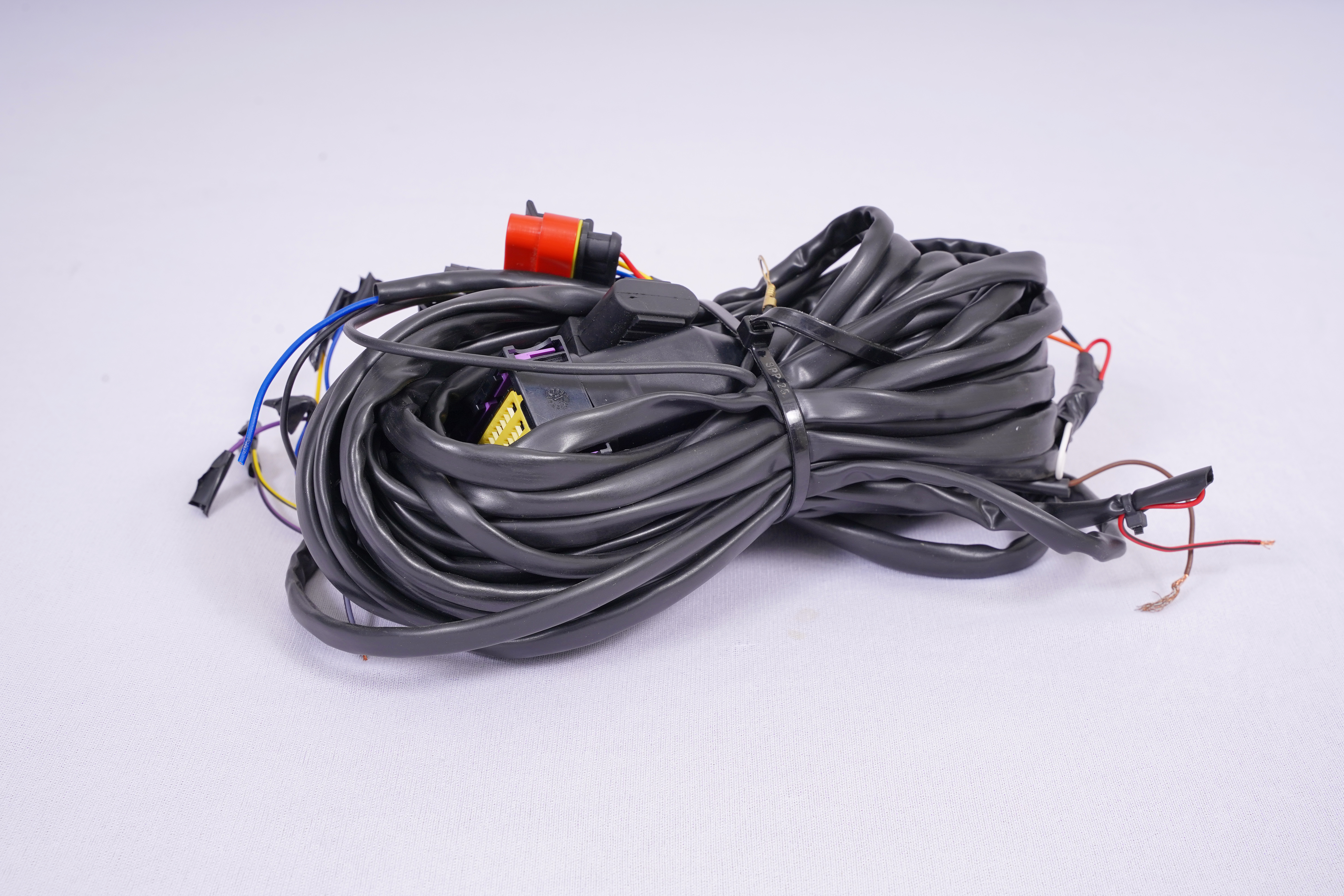

Wiring Harness

Connects all electronic components reliably.

Switch

Push-button for fuel mode selection with LED level display and acoustic alerts.

• Petrol Mode: LED off, gas level info hidden, five LEDs off.
• LPG Mode: LED on, gas level info visible, five LEDs on.
• Automatic Changeover: If LPG finishes, system switches to Petrol automatically.
• Error Indication: LED blinks, beeps if system/electrical issue occurs.
• Acoustic Indications: Mode change = 1 beep, Reserve = 5 beeps × 3, Error = 8 beeps, Empty = 10 beeps × 2.
